SHED FID Analyzers | SHED FID-Analysatoren

SHED’s (Sealed Housing for Evaporative Determination FID Analyzer) are large, mini or micro sized environmental test chambers with manual/automatic control, often equipped with a SHED FID for the determination of VOC concentration emissions testing. Micro or mini SHEDs are commonly used for permeation testing of fuel system components, monitoring evaporating VOC concentration from interior car materials and non automotive materials.

The Model VE 155-15

The Model 155-15: This heated FID Analyzer is designed to be used for small test chambers like a Micro SHED of 1 cubic meters of volume down to 0.3 cubic meters of volume. Features a standard 15 ml/min per minute for sample flow through. Chose between 12 and 80 ml/min sample flow through. Zero and span gas valves.

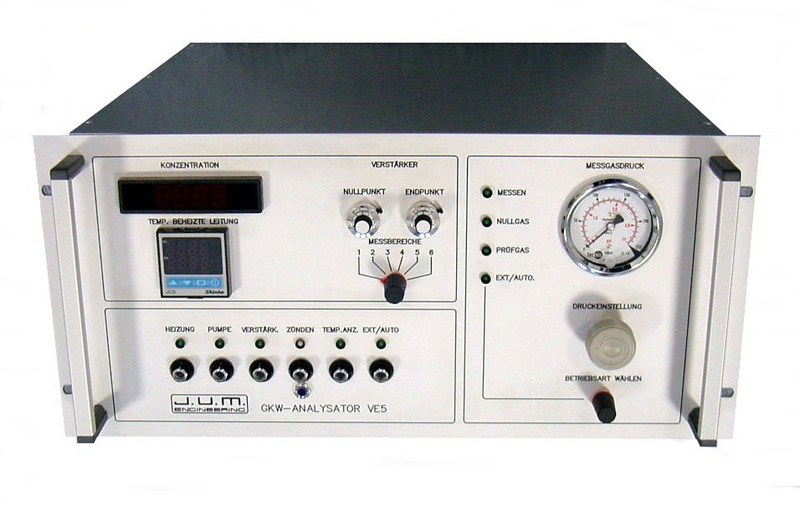

The Model VE 5

The VE 555: This heated FID Analyzer is designed to be used for Drive In Large SHED chambers in sizes of 50 cubic meter up to truck sizes. Features 3 liter per minute flow through and closed loop applications. Zero and span gas valves.

The VE 335: This heated FID analyzer is the lower cost alternative of our model VE 555. It is analytically 100% identical to the VE 555.  Features 3 liter per minute flow through and closed loop applications. No zero and span gas valves.

The Model 155-400: This heated FID Analyzer is designed to be used for smaller test chambers like a Mini SHED with 6 cubic meters of volume. Features a standard 400 ml per minute for sample flow through or closed loop operation. Chose between 350 and 800 ml per minute sample flow through. Zero and span gas valves.

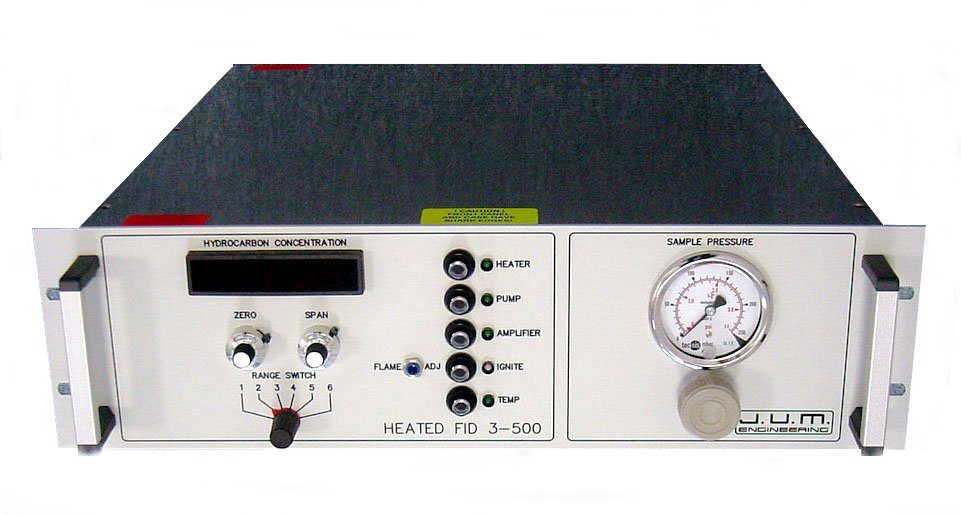

The Model VE3-500

The Model 135-15: This heated FID analyzer is the lower cost alternative of our model 155-15. It is analytically 100% identical to the model 155-15. Features a standard 15 ml/min sample flow through. Chose between 12 and 80 ml/min sample flow through capability. No zero and span gas valves.

The Model VE3-500

The Model 135-400: This heated FID analyzer is the lower cost alternative of our model 155-400. It is analytically 100% identical to the model 155-400, Features a standard 400 ml per minute for sample flow through or closed loop operation. Chose between 350 and 800 ml per minute sample flow through. No zero and span gas valves.

The Model W600

The Model W600 -15: This heated FID Analyzer is designed to be directly installed on the side wall of the SHED to realize shortest possible response times by using very short sample lines. Features a standard 15 ml per minute sample flow through capability. This analyzer is designed to be used for small test chambers like a 1 cubic meter Micro SHED or smaller test chambers in the 0.3 cubic meter volume category. With internal zero and span gas valves. Sample flow through rates between 12 and 80 plus ml per minute can be chosen.

SHED’s (Sealed Housing Evaporative Determination) sind Umweltprüfkammern sowohl in Minioder Mikrogröße mit manueller oder automatischer Steuerung, die häufig mit einem SHED FID zur Bestimmung der Ausgasungskonzentrationen des VOC-Gehaltes der eingebrachten Teile ausgestattet sind. Mikro oder Mini SHED werden üblicherweise zur Prüfung auf toxische VOC Bestandteile eines Prüflings verwendet. In größeren Prüfkammern werden komplette Fahrzeuge zur Permeationsprüfung von Kraftstoffsystemkomponenten verwendet, um die Verdunstungskonzentration bestimmen zu können als auch zur Überwachung von Fahrzeuginnenmaterialien.

The Model VE 155-15

Modell 155-15: Dieser beheizte FID Analysator ist für kleine Testkammern mit einem Volumen von 1 Kubikmeter bis runter zu einem Volumina von 0,3 Kubikmetern ausgelegt. Dieses Gerät verfügt über einen Messgasdurchsatz von 15 ml pro Minute Messgasdurchfluss. Durchflussraten zwischen 12 und 80 ml/min sind machbar.

The Model VE 5

The VE 555: Dieser beheizte FID SHED Analysator ist für SHED Kammern in Drive-In Größe von 50 Kubikmetern bis zu LKW-Größen ausgelegt. Der VE 555 leistet 3 Liter pro Minute Durchfluss und kann für so genannte Closed-Loop Anwendungen eingesetzt werden.

The VE 335: Dieser beheizte FID-Analysator ist die kostengünstigere Alternative zu unserem Modell VE 555. Er ist analytisch 100% identisch mit dem VE 555. Er verfügt über einen Durchfluss von 3 Litern pro Minute und kann im geschlossenen Kreislauf eingesetzt werden. Keine Null- und Kalibriergasventile.

The Model 155-400: Dieser beheizte FID-Analysator ist für kleinere Prüfkammern wie ein Mini SHED mit 6 Kubikmetern Volumen konzipiert. Er verfügt über einen Standardwert von 400 ml pro Minute für den Probendurchfluss oder den Betrieb im geschlossenen Kreislauf. Sie können zwischen 350 und 800 ml pro Minute Probendurchfluss wählen. Null- und Kalibriergasventile.

The Model VE3-500

The Model 135-15: Dieser beheizte FID-Analysator ist die kostengünstigere Alternative zu unserem Modell 155-15. Er ist analytisch 100% identisch mit dem Modell 155-15. Er verfügt über einen Standard-Probendurchfluss von 15 ml/min. Sie können zwischen 12 und 80 ml/min Probendurchfluss wählen. Keine Null- und Kalibriergasventile.

The Model VE3-500

The Model 135-400: Dieser beheizte FID-Analysator ist die kostengünstigere Alternative zu unserem Modell 155-400. Er ist analytisch zu 100% identisch mit dem Modell 155-400 und verfügt über eine Standardkapazität von 400 ml pro Minute für den Probendurchfluss oder den Betrieb im geschlossenen Kreislauf. Sie können zwischen 350 und 800 ml pro Minute Probendurchfluss wählen. Keine Null- und Kalibriergasventile.

The Model W600

The Model W600 -15: Dieser beheizte FID-Analysator ist so konzipiert, dass er direkt an der Seitenwand des SHED installiert werden kann, um durch die Verwendung sehr kurzer Probenleitungen kürzestmögliche Reaktionszeiten zu erzielen. Er verfügt über eine Standard-Probendurchflusskapazität von 15 ml pro Minute. Dieser Analysator ist für kleine Prüfkammern wie einen 1-Kubikmeter-Micro-SHED oder kleinere Prüfkammern in der 0,3-Kubikmeter-Volumenkategorie konzipiert. Mit internen Null- und Kalibriergasventilen. Es können Probendurchflussraten zwischen 12 und 80 ml pro Minute gewählt werden.

Heated FID Analyzers for Various TVOC Test Chamber Applications

Large Car Drive in Chamber 50 Cubic Meter and above
Großes Auto Drive in Kammer 50 Kubikmeter und mehr
6 Cubic Meter and above
6 Kubikmeter und mehr
1 Cubic Meter and above
1 Kubikmeter und mehr
0.20 Cubic Meter and above
0.20 Kubikmeter und mehr

Suggested FID analyzers to be used for above applications
Vorgeschlagene FID-Analysatoren für die oben genannten Anwendungen

VE 555
VE 135
Mod 155-400
Mod 135-400
Mod 155-15
Mod 135-15
Mod W-600-15
Mod 155-15 with 12 ml/min Module
Mod 135-15 with 12 ml/min Module
Mod W-600-15 with 12 ml/min Module
